Investigation of solidification behavior of the Sn-rich ternary Sn–Bi–Zn alloys

S Mladenović, D Manasijević, M Gorgievski, D Minić, Silvana Branislav Dimitrijević

Abstract

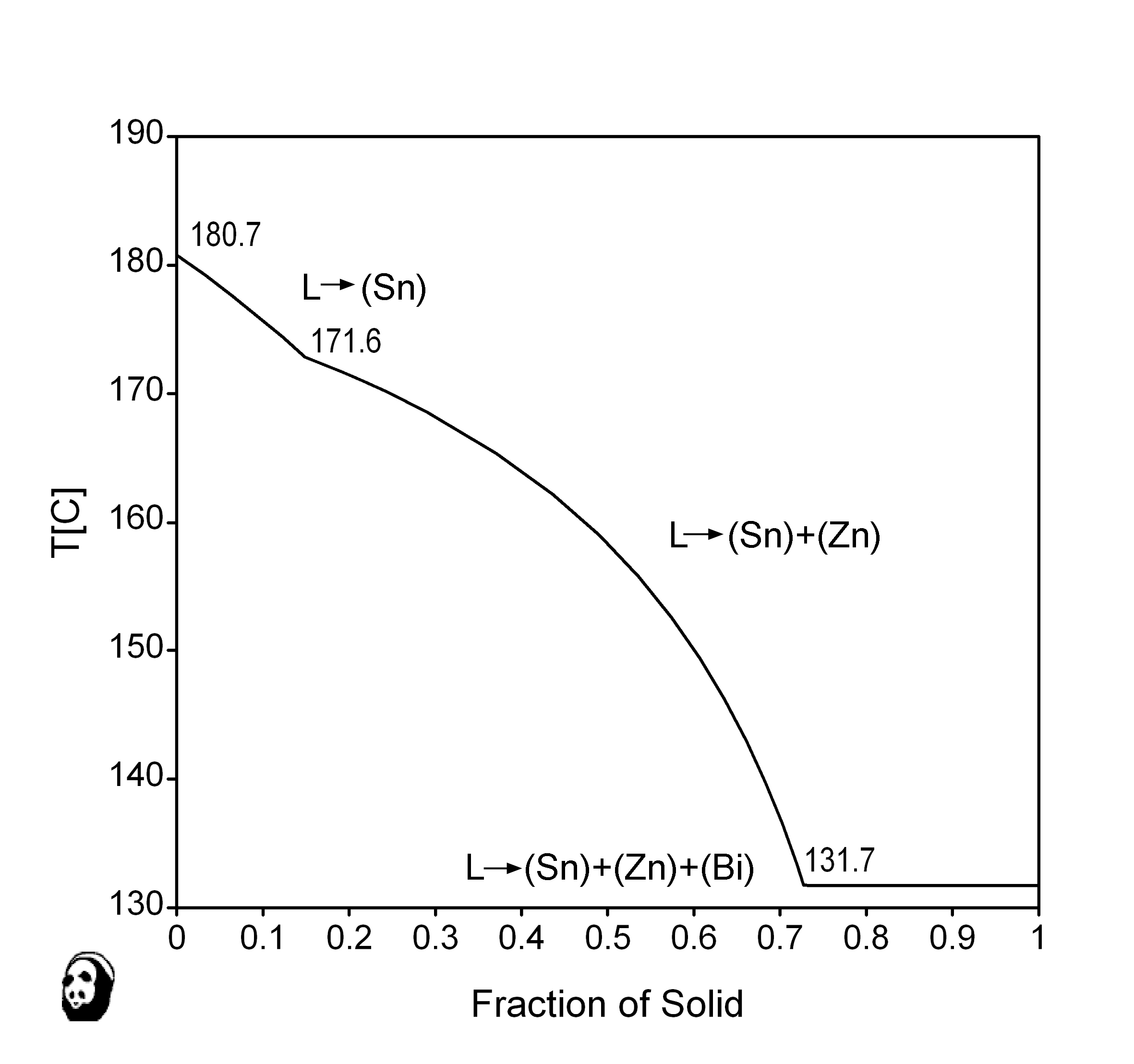

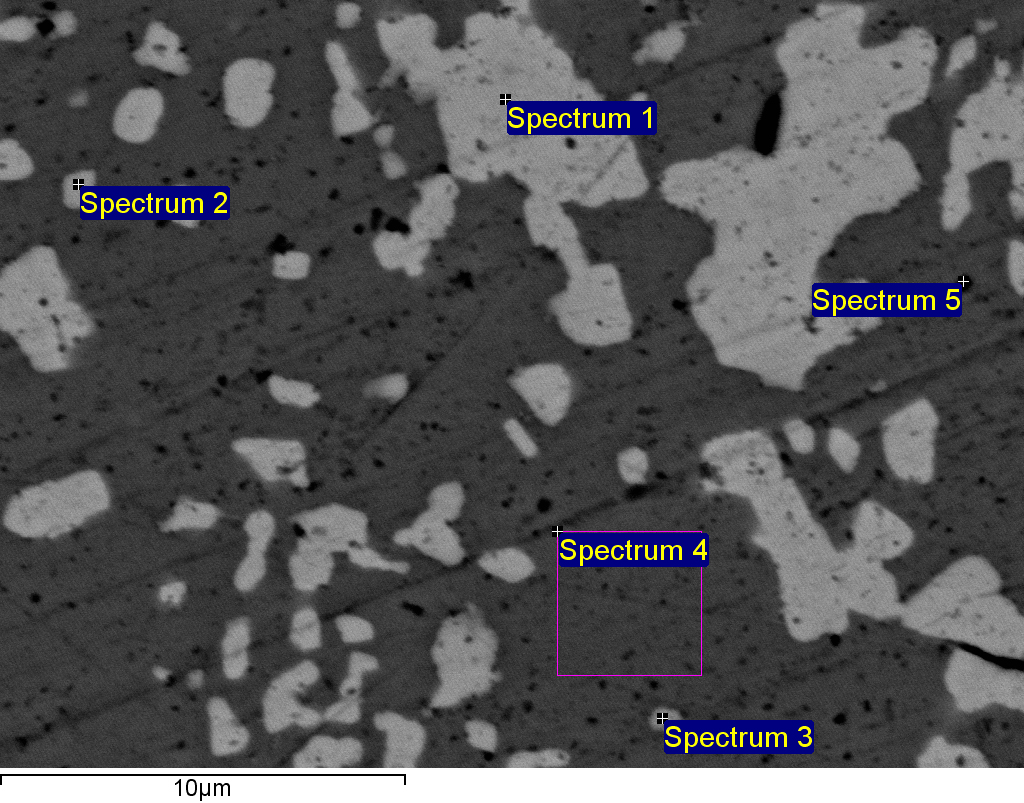

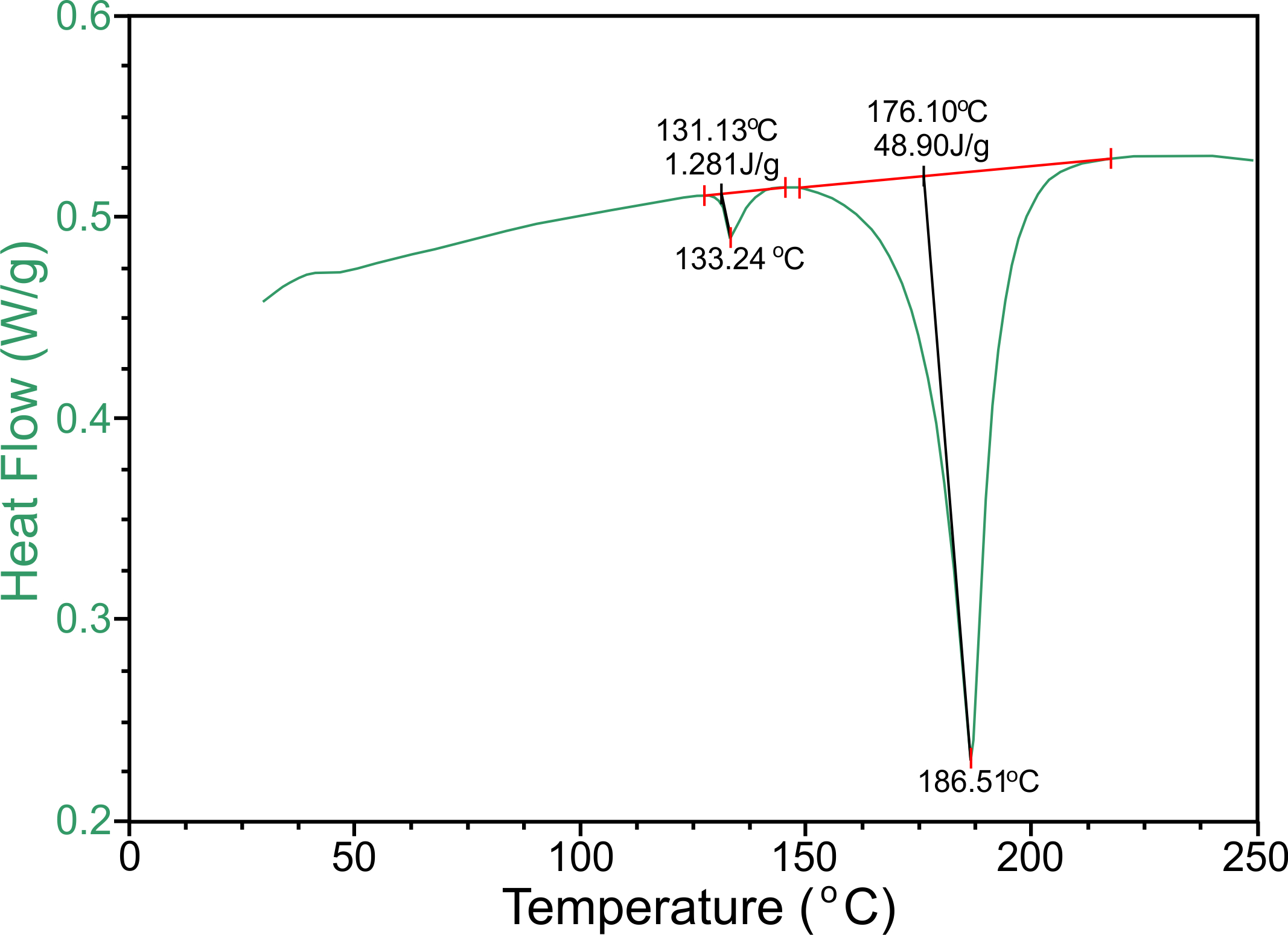

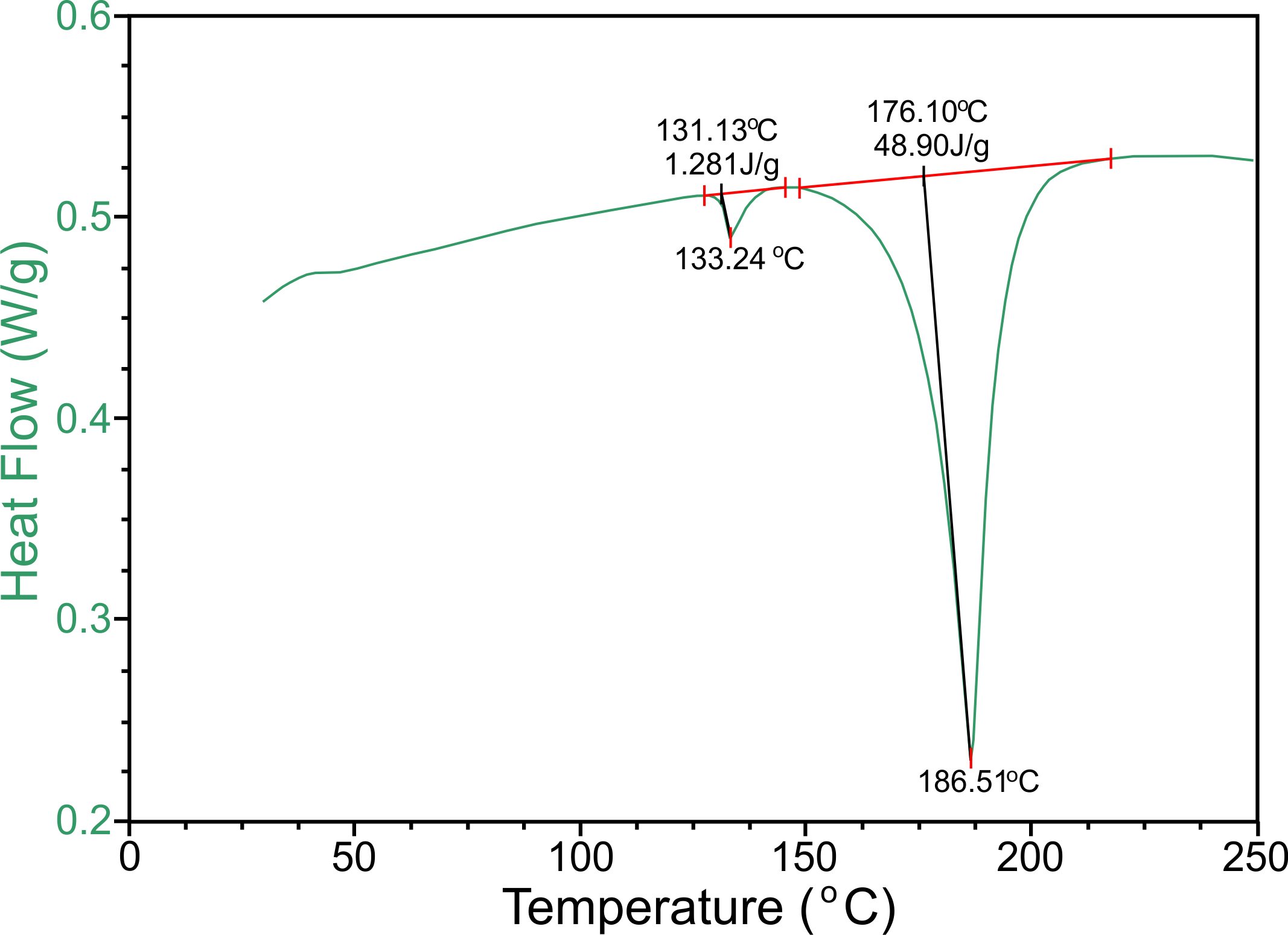

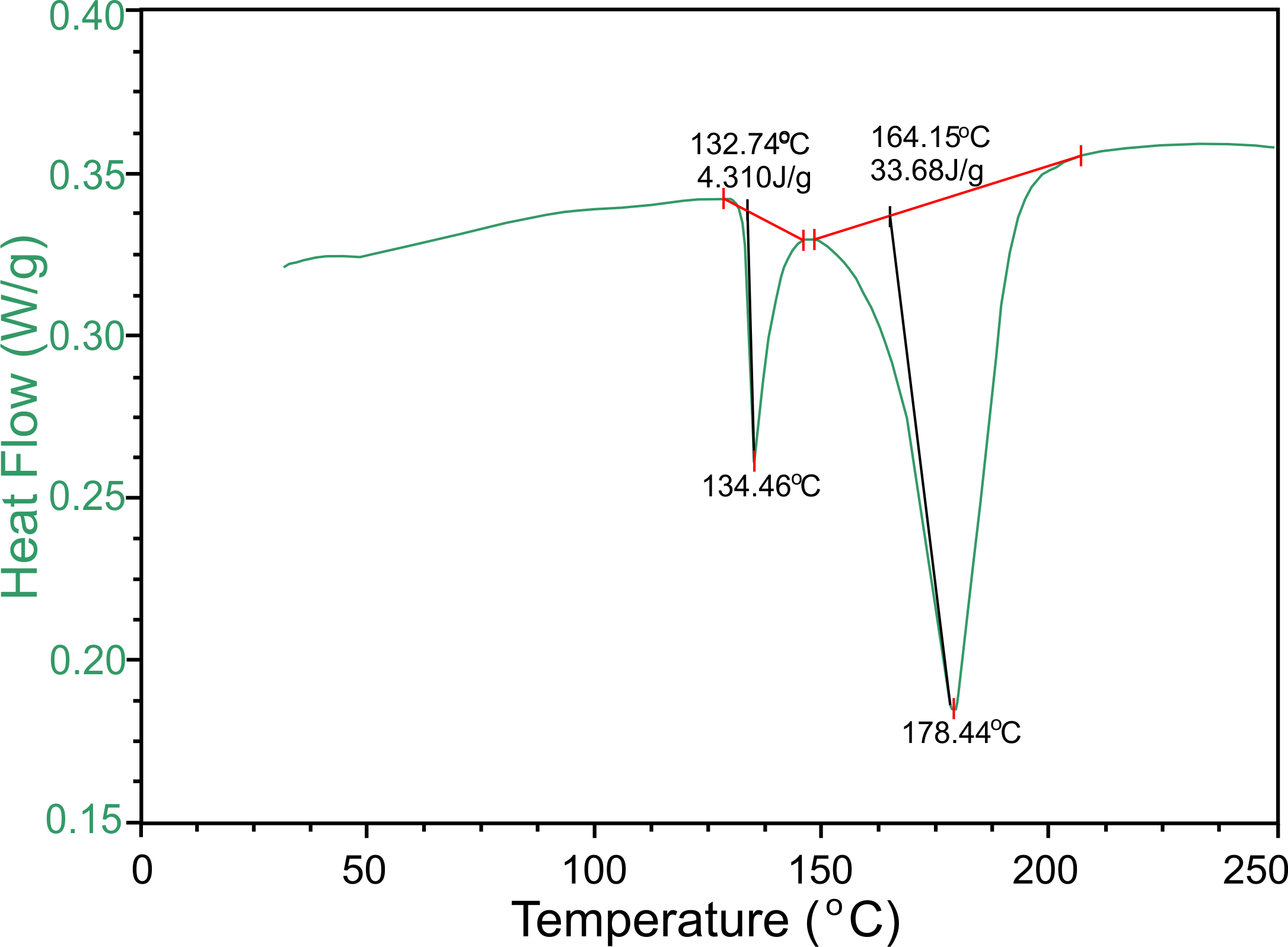

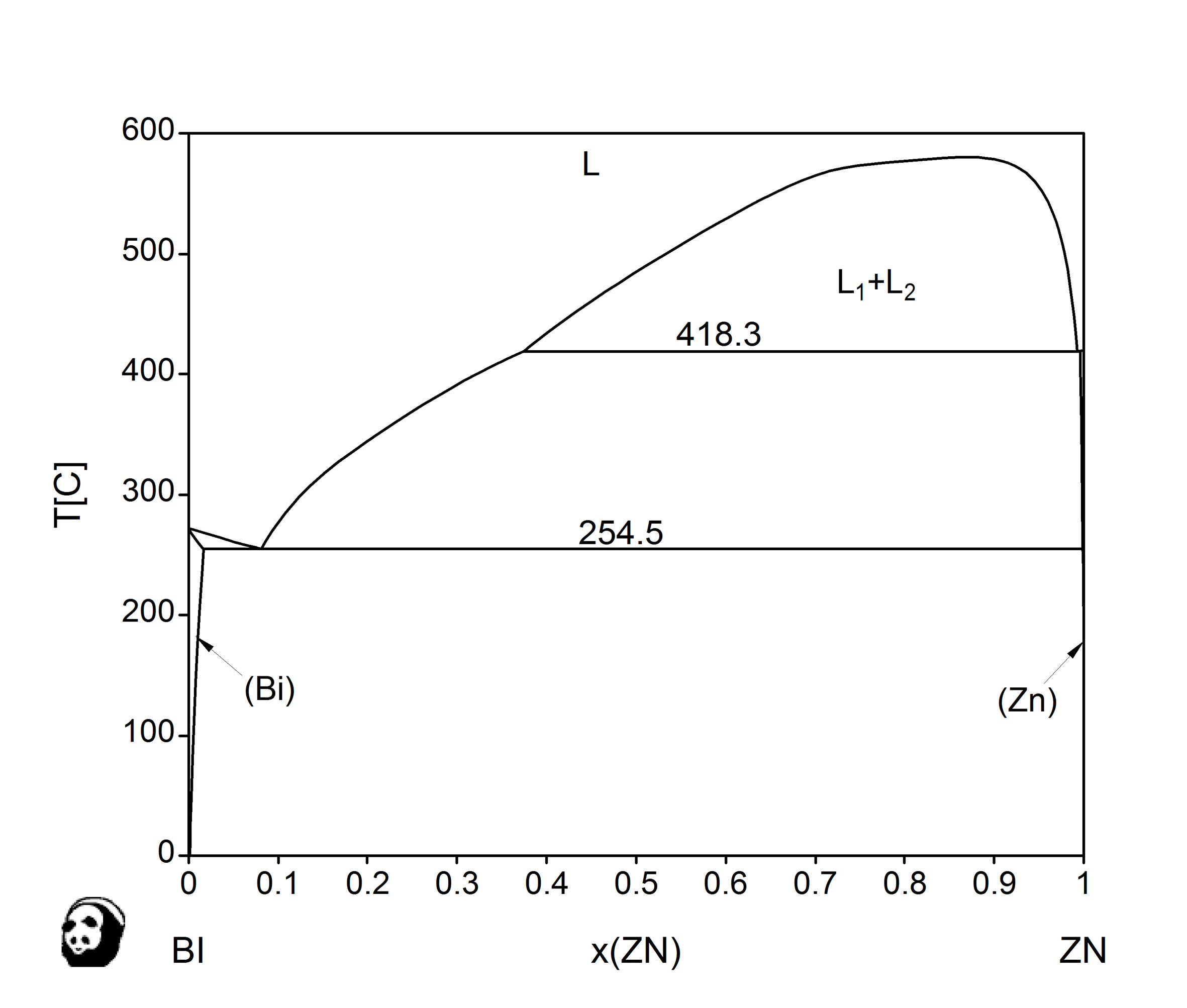

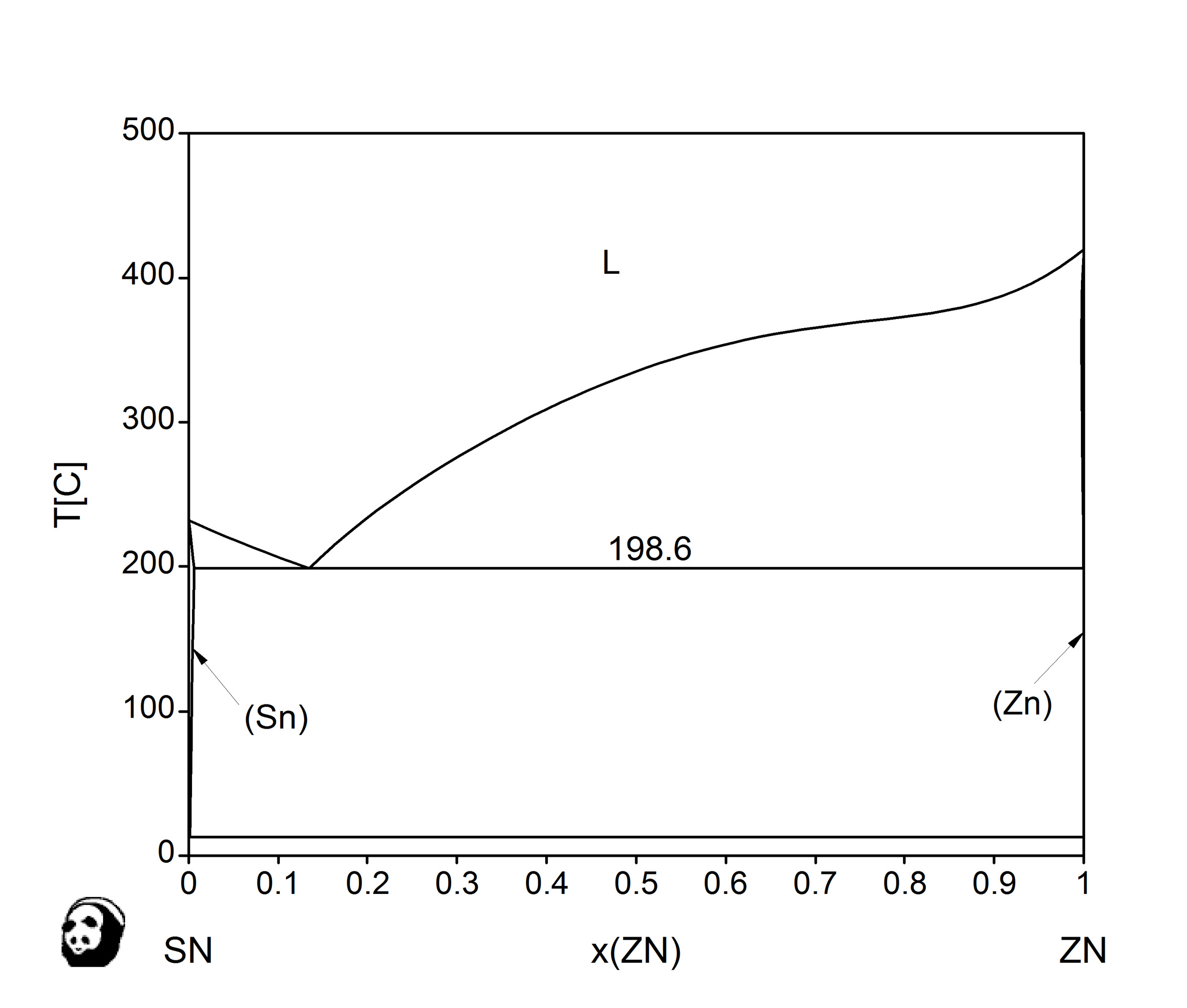

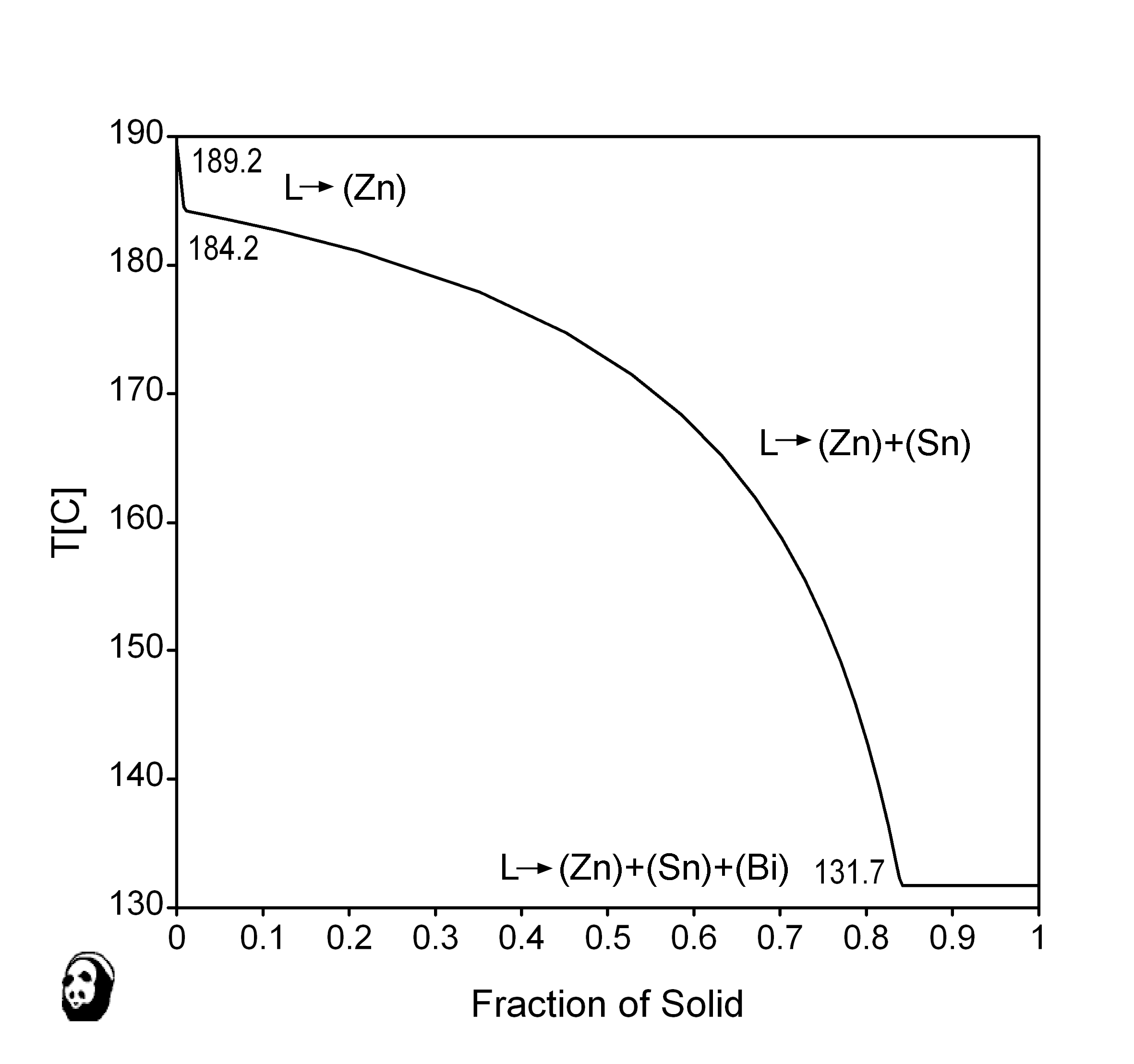

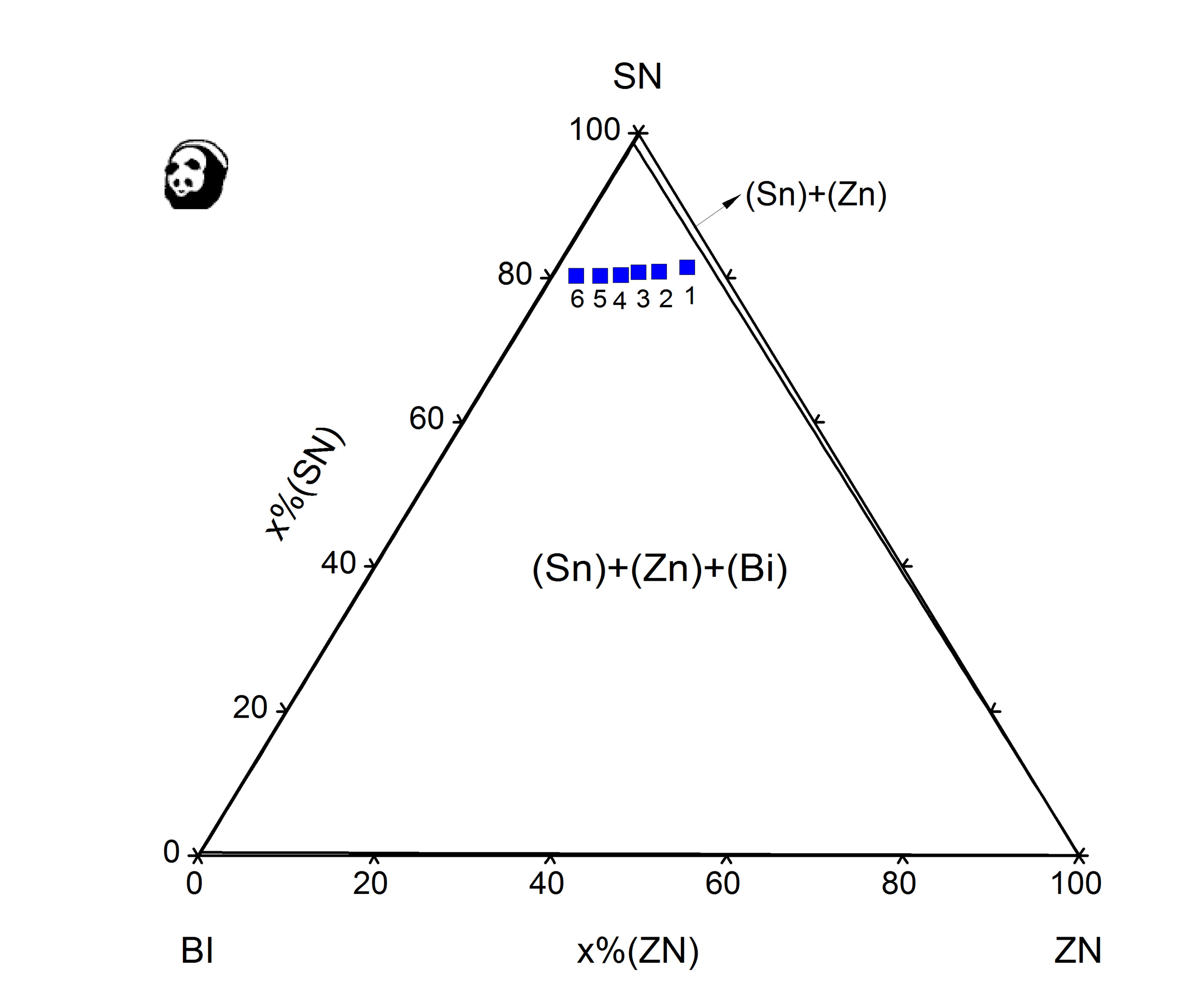

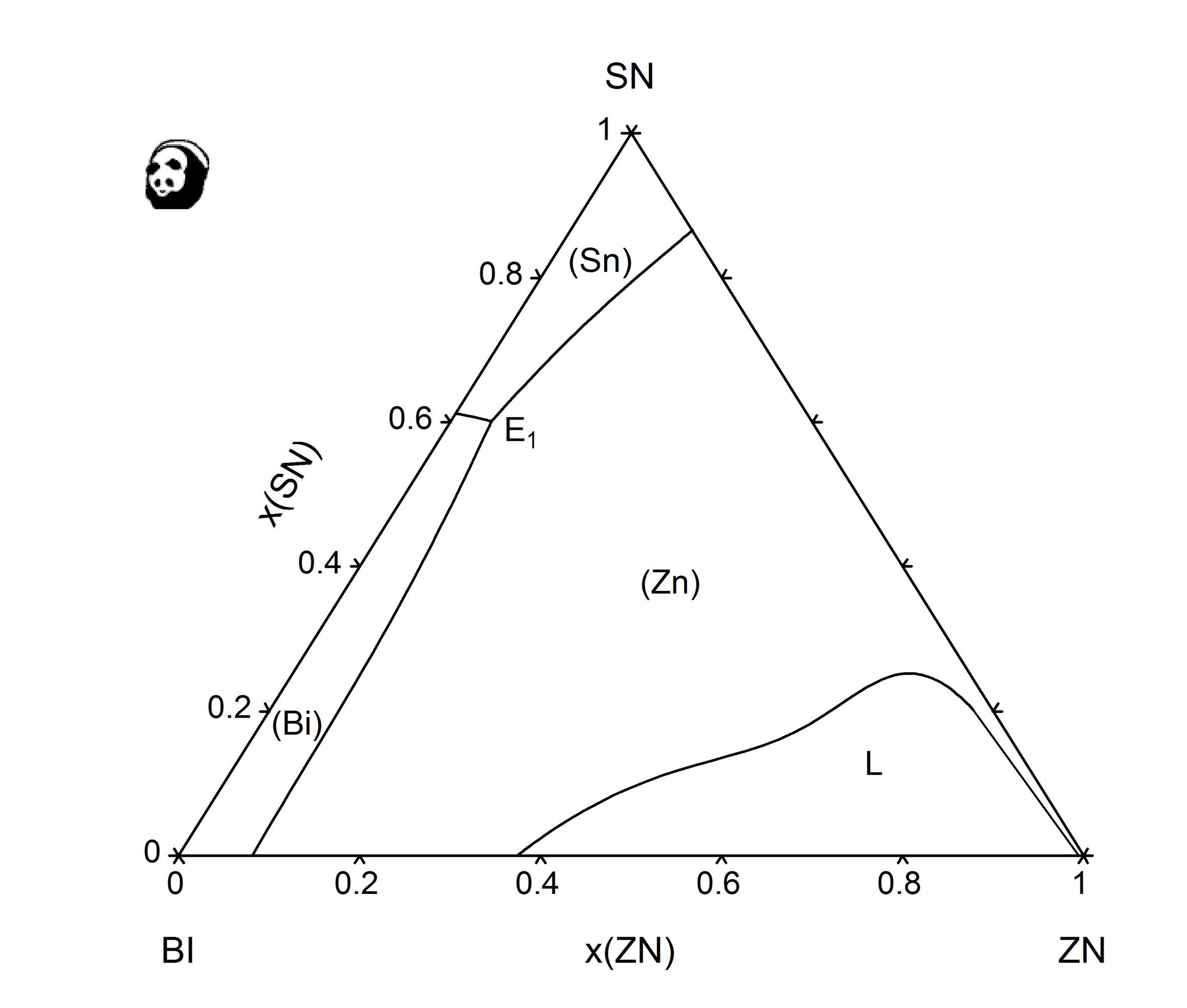

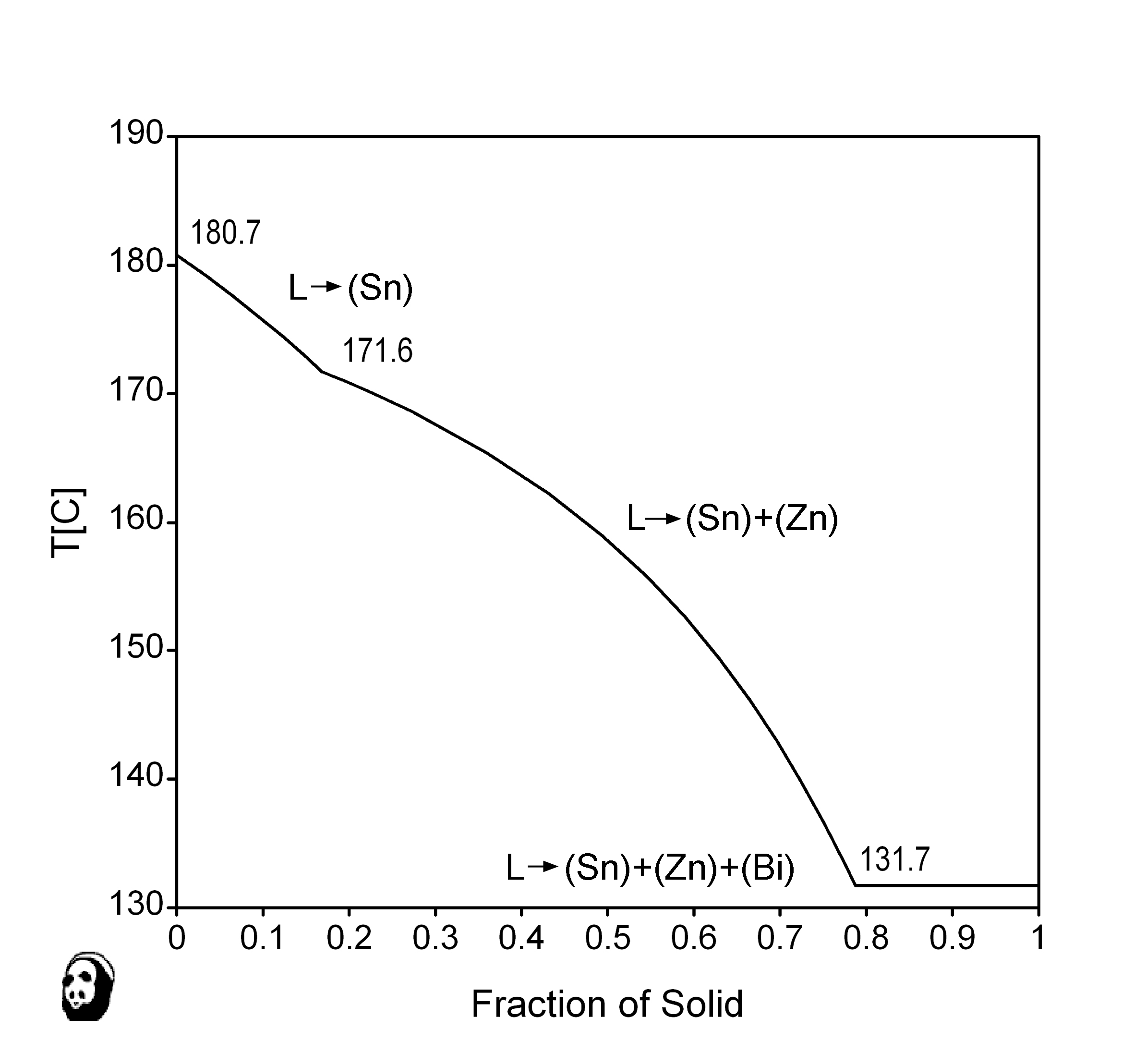

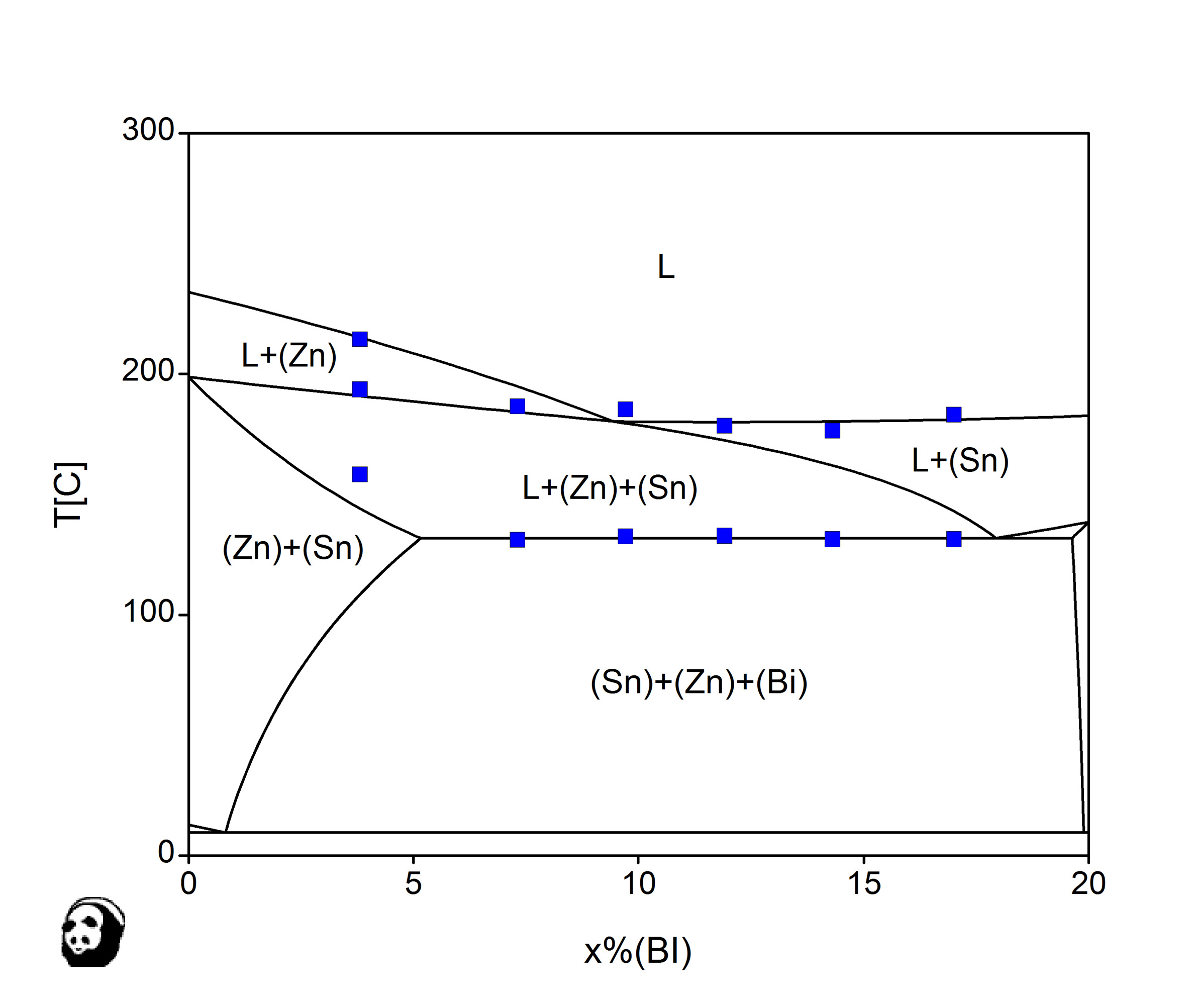

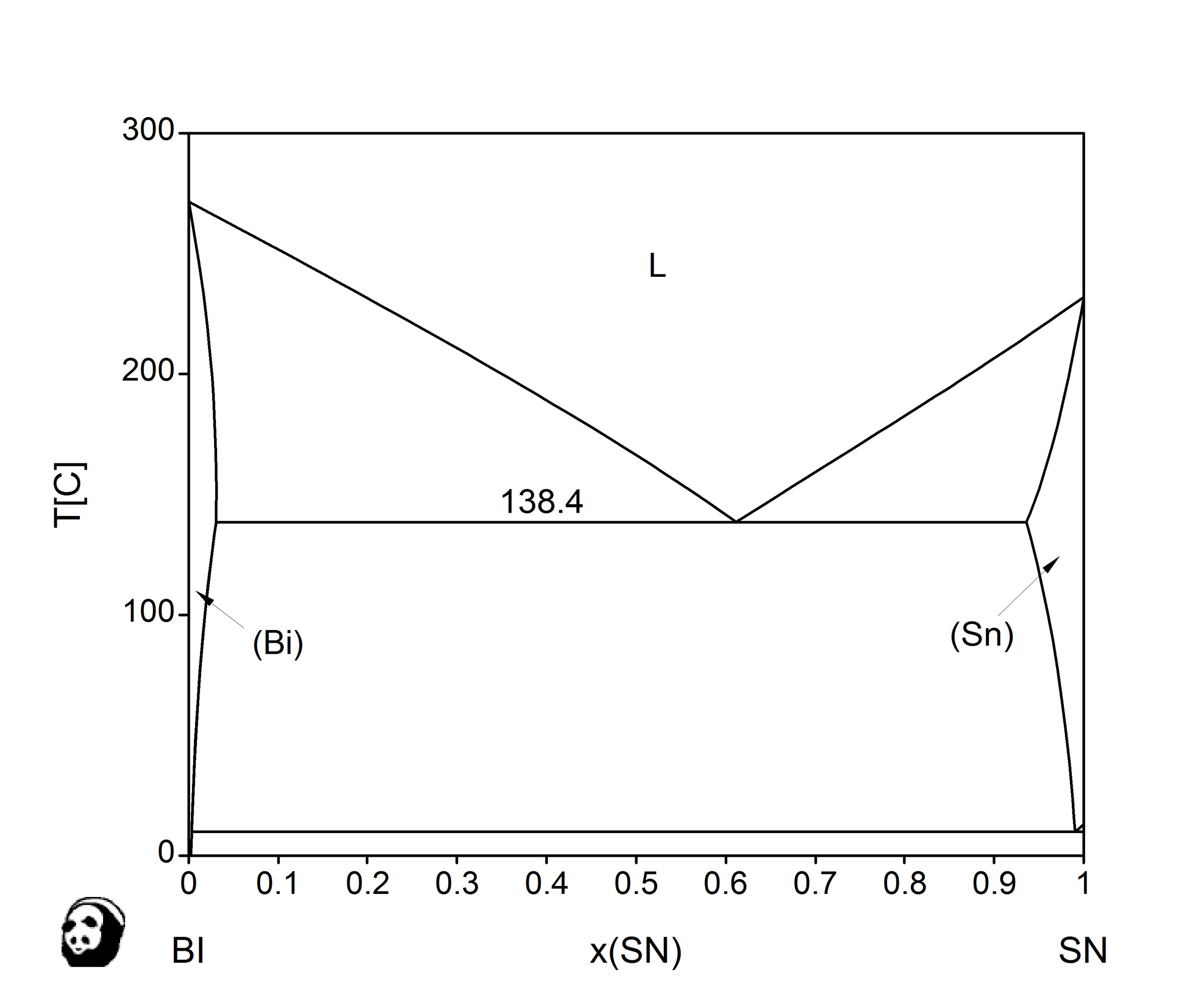

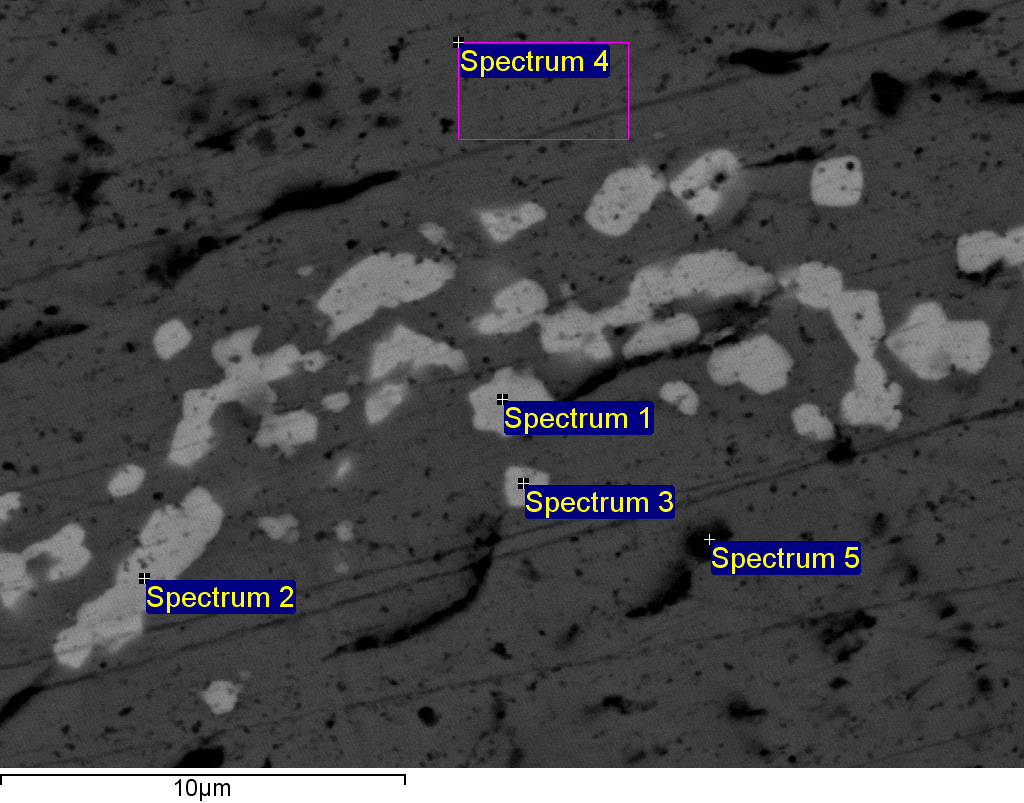

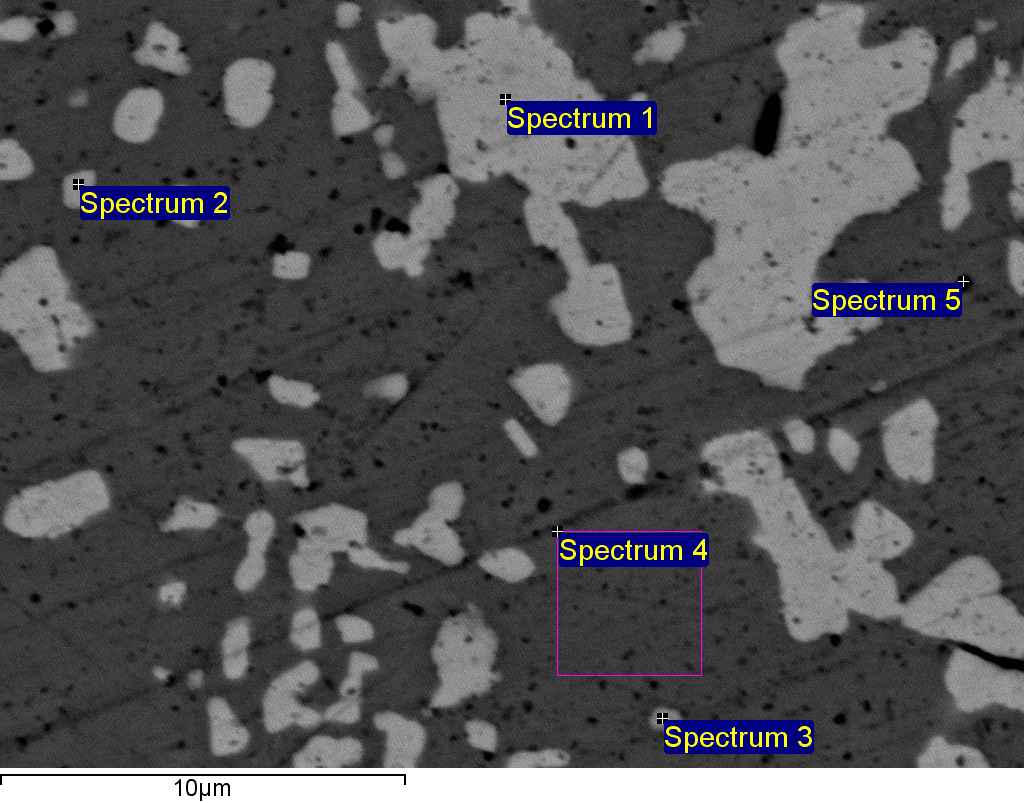

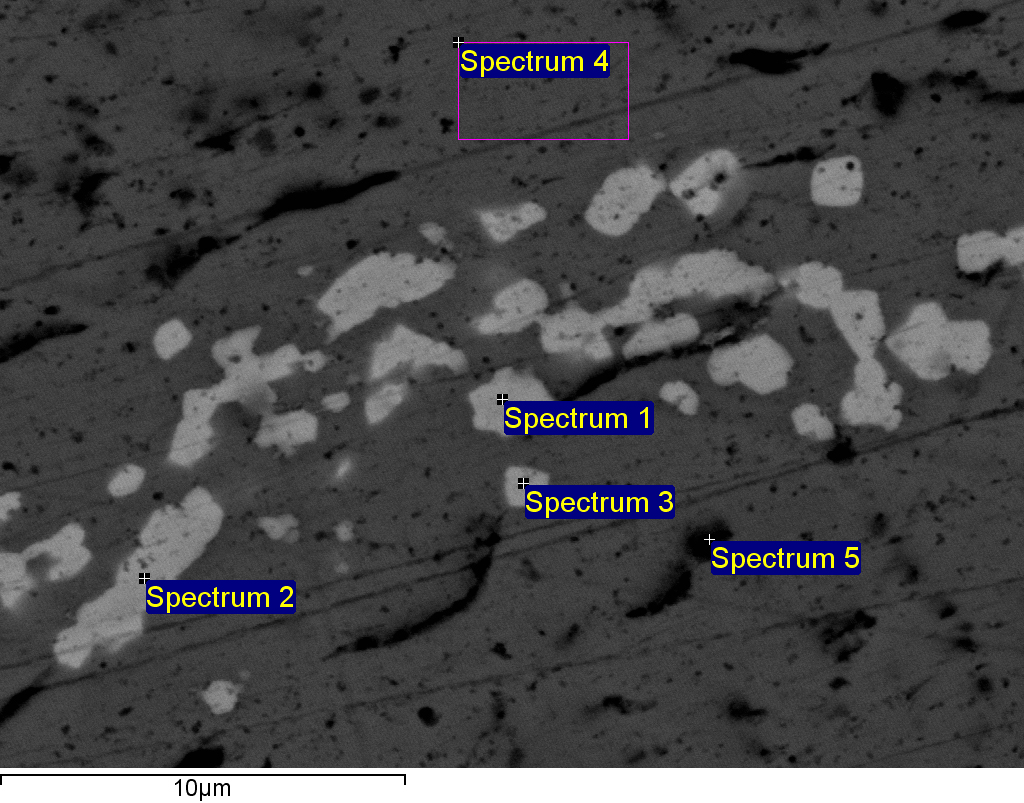

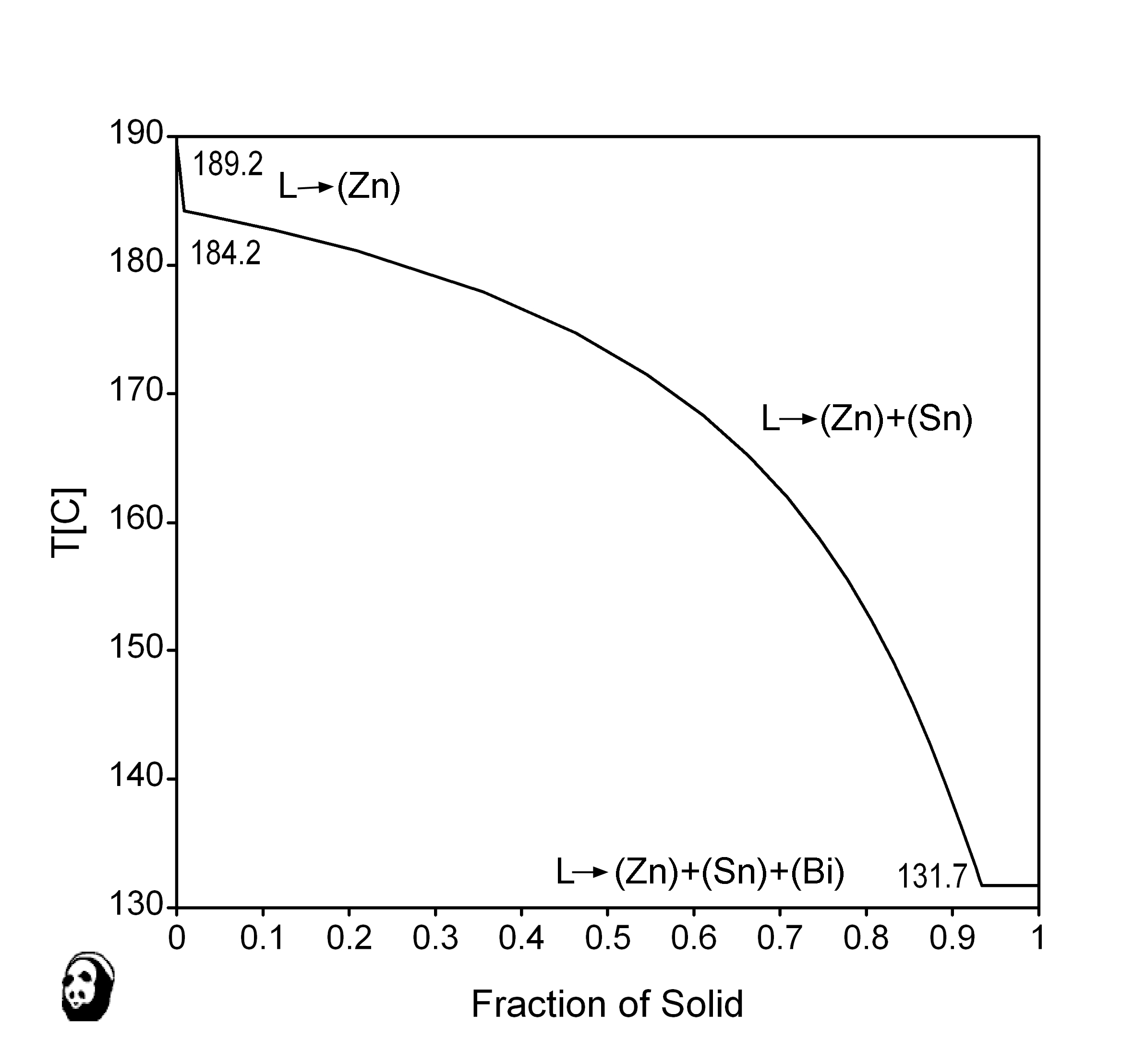

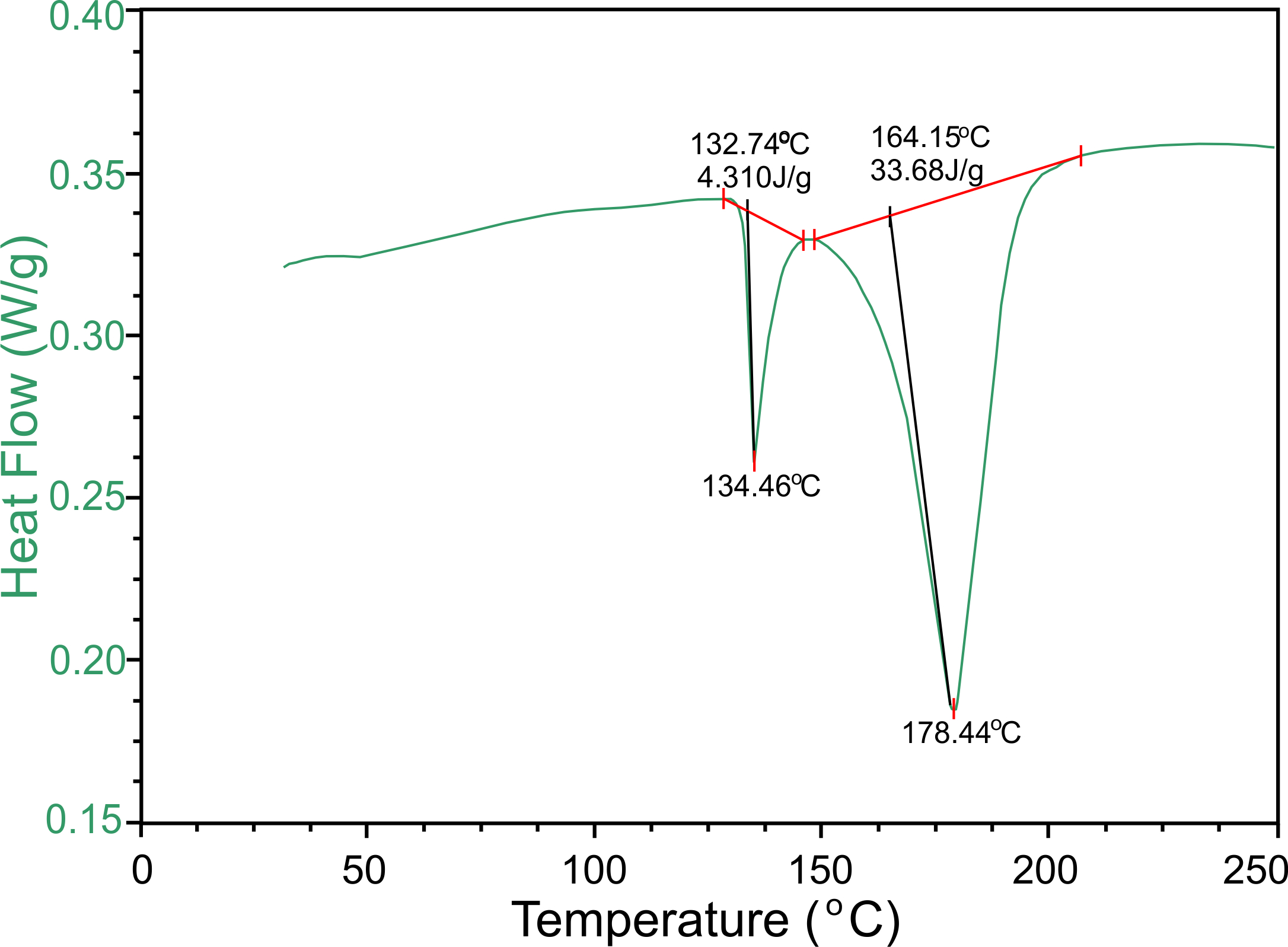

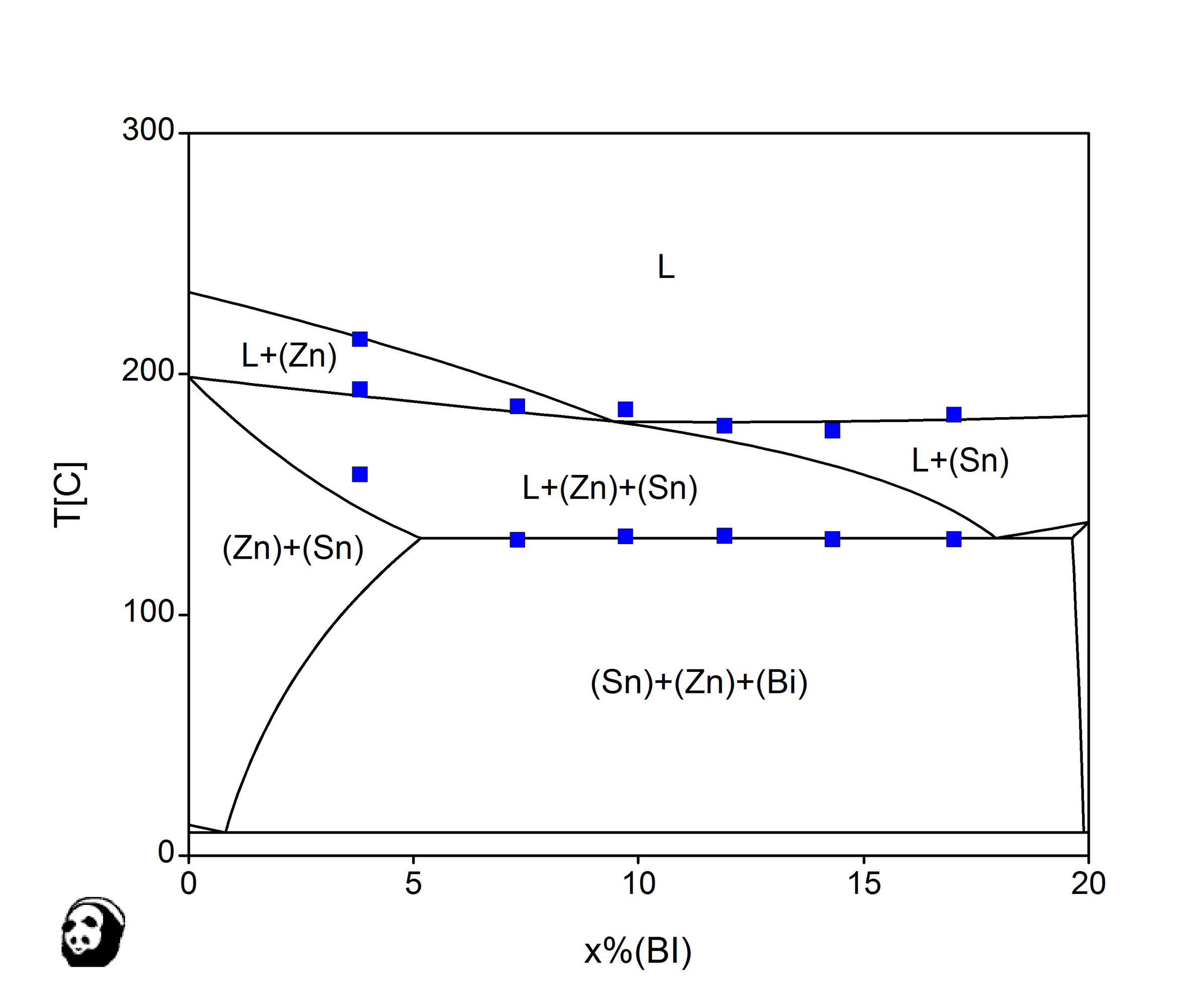

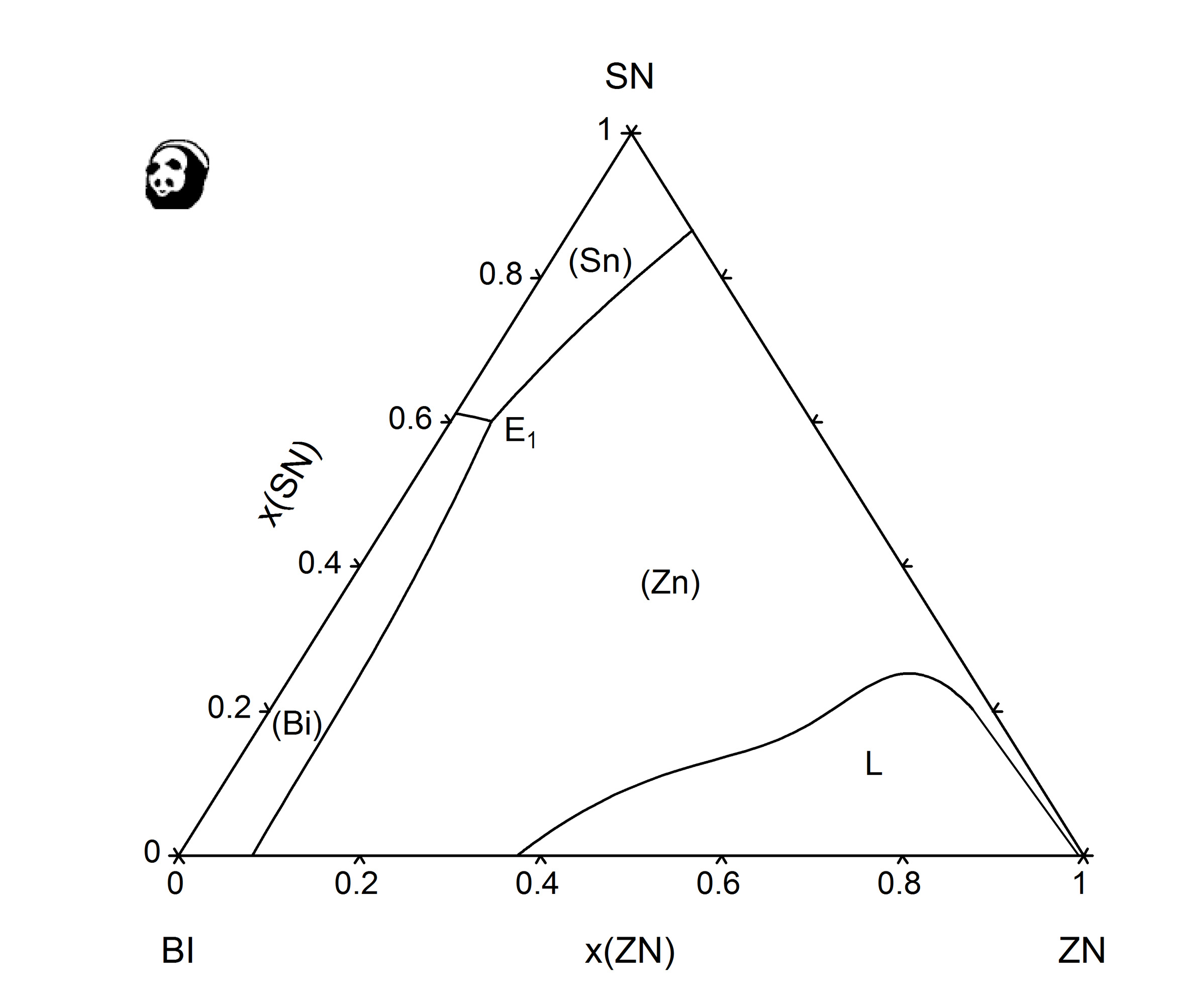

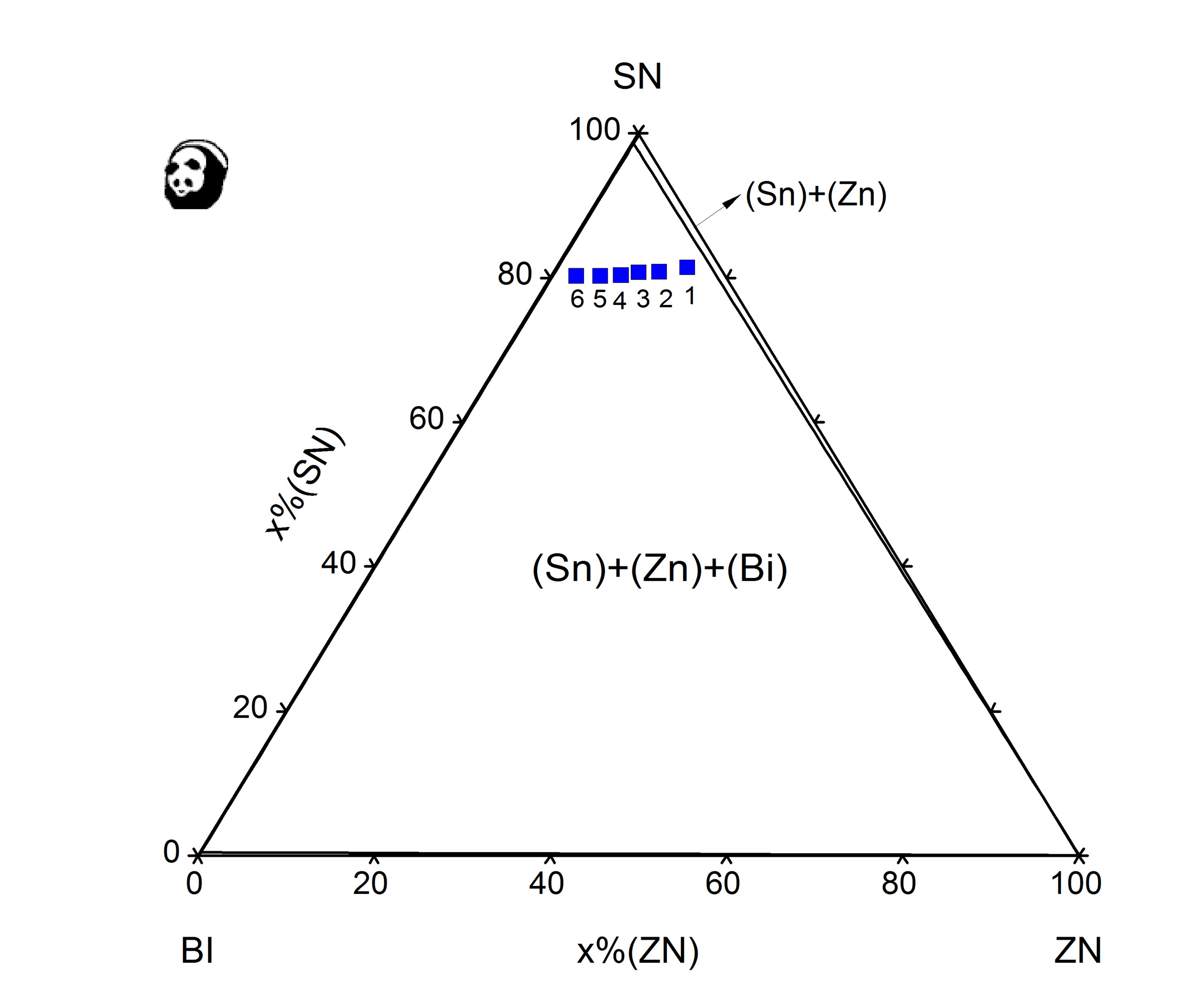

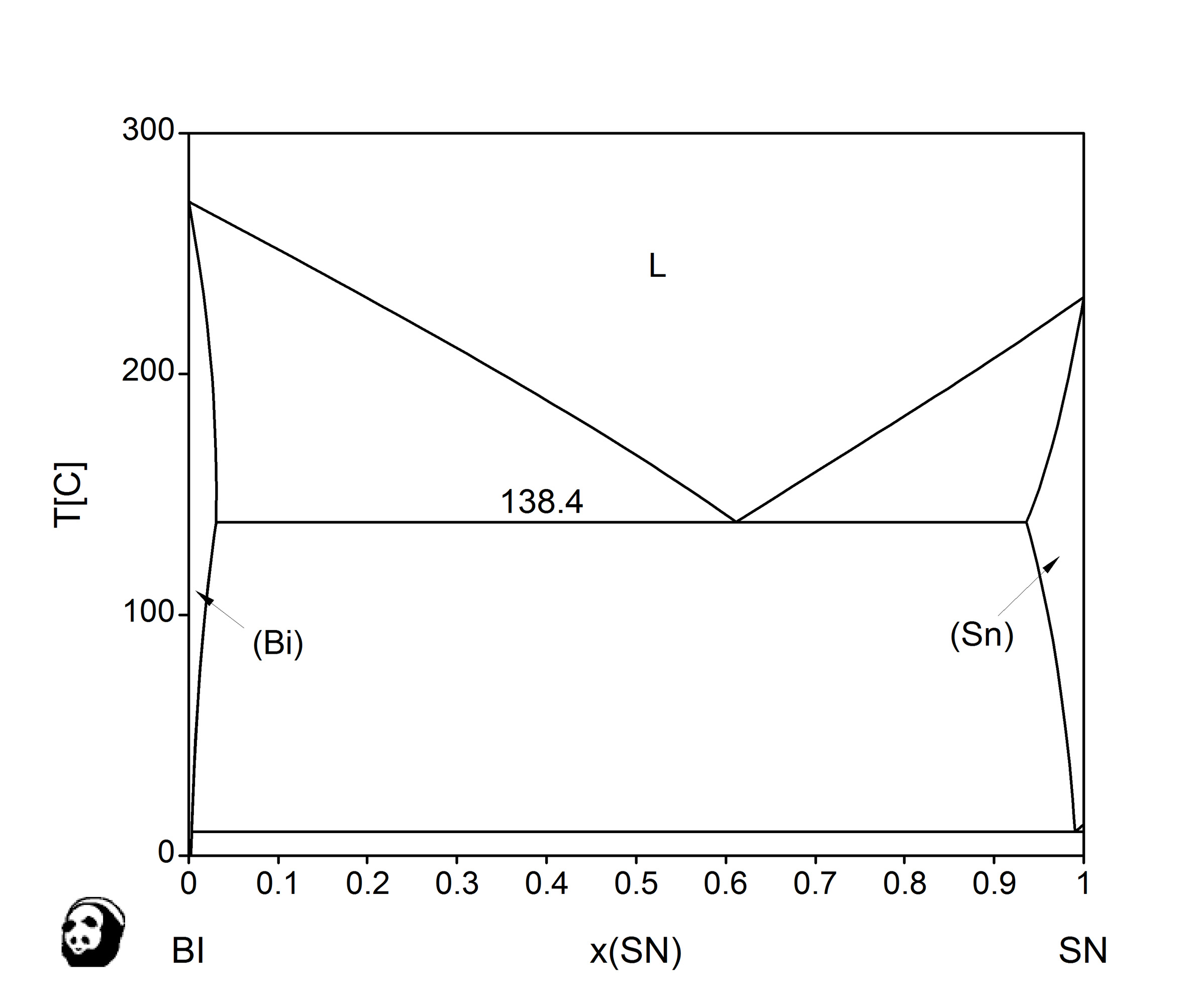

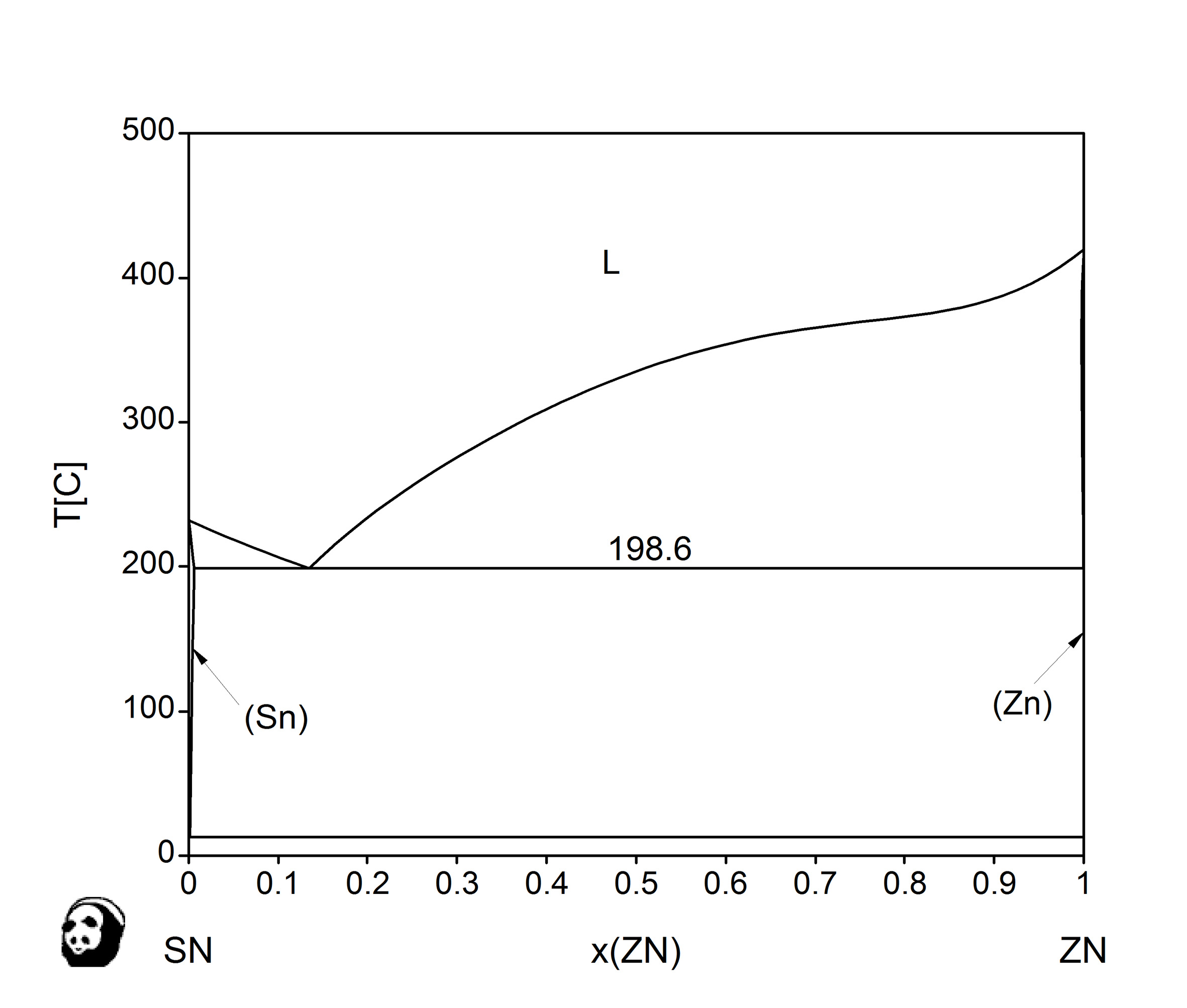

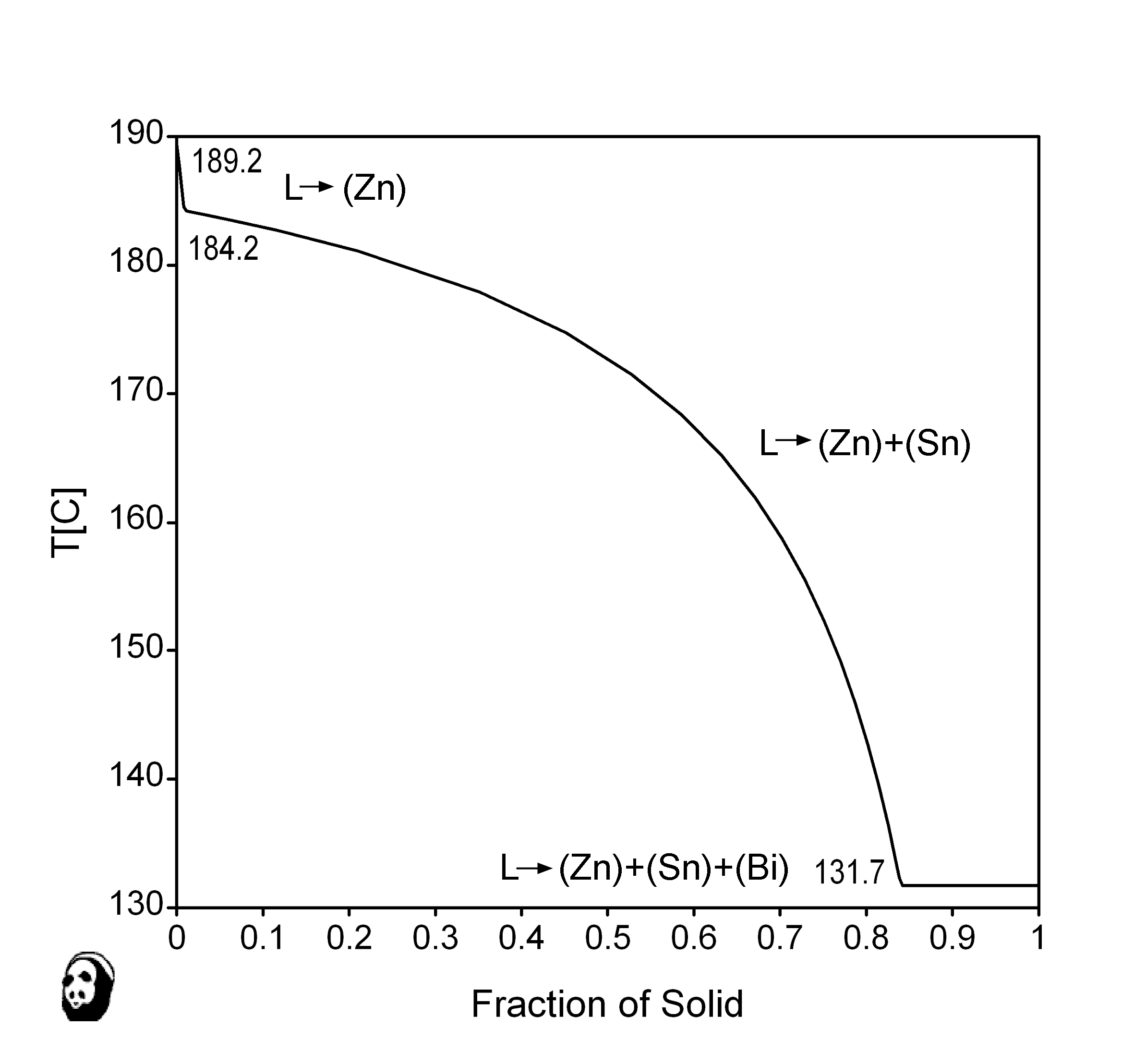

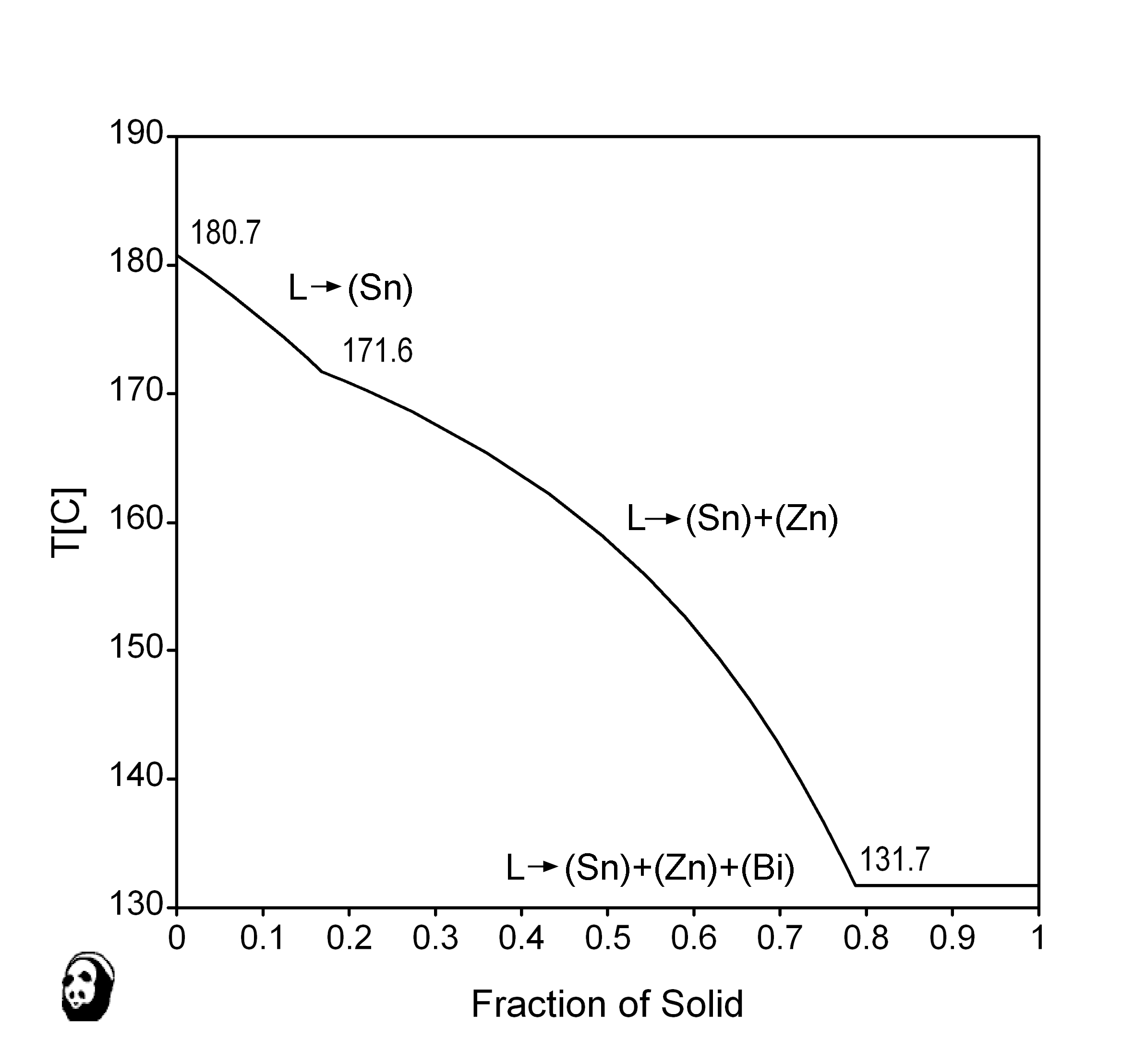

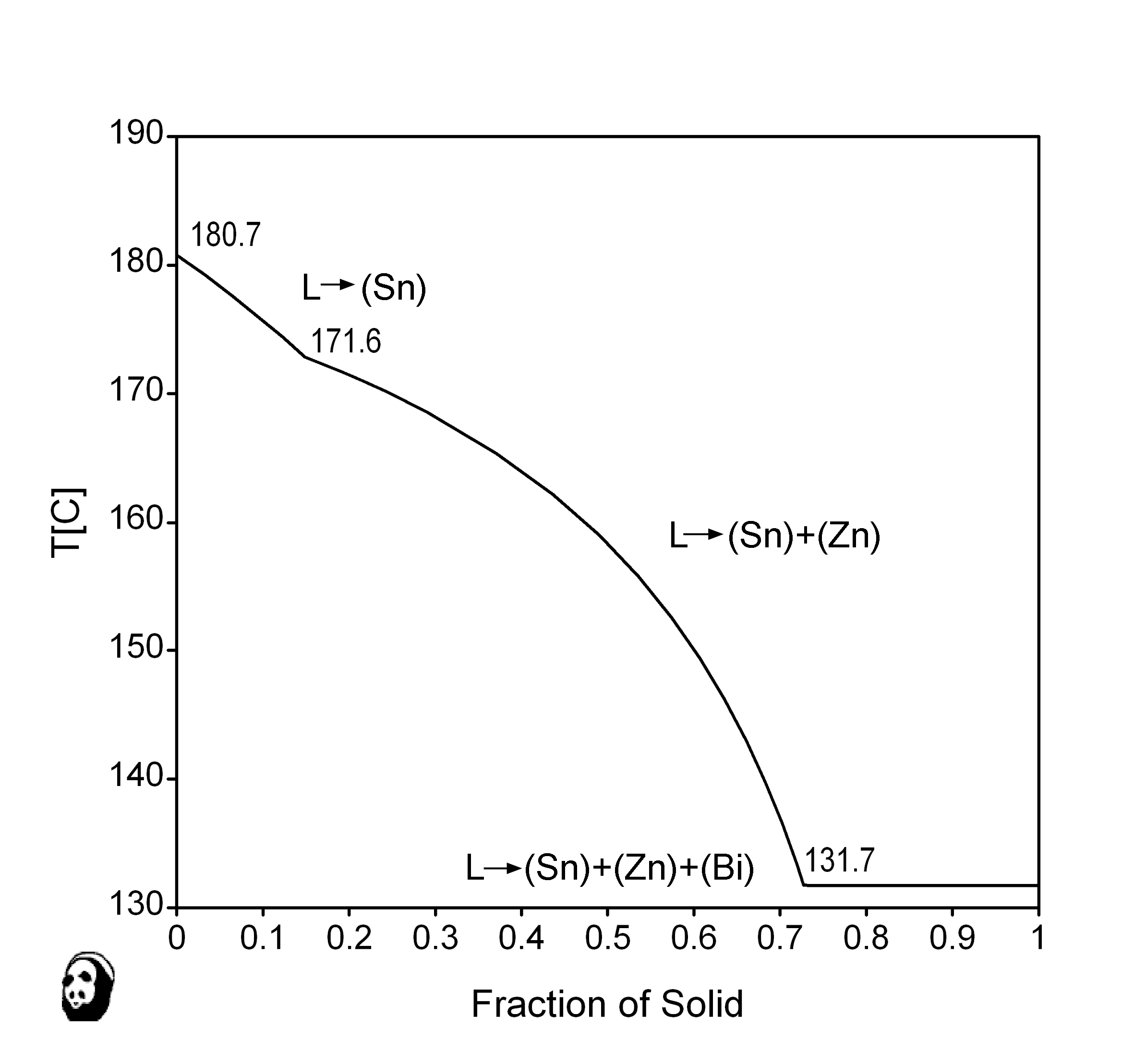

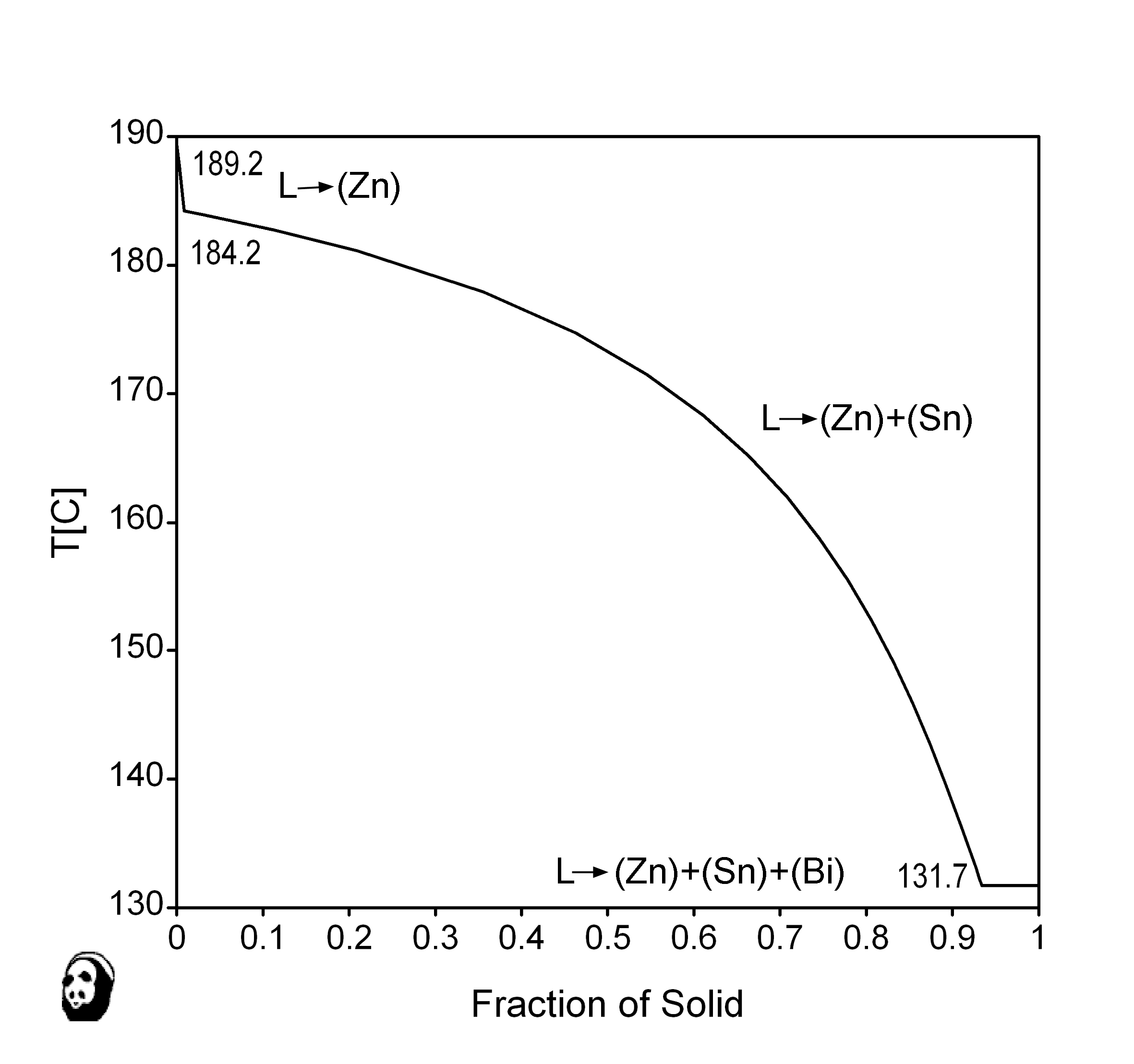

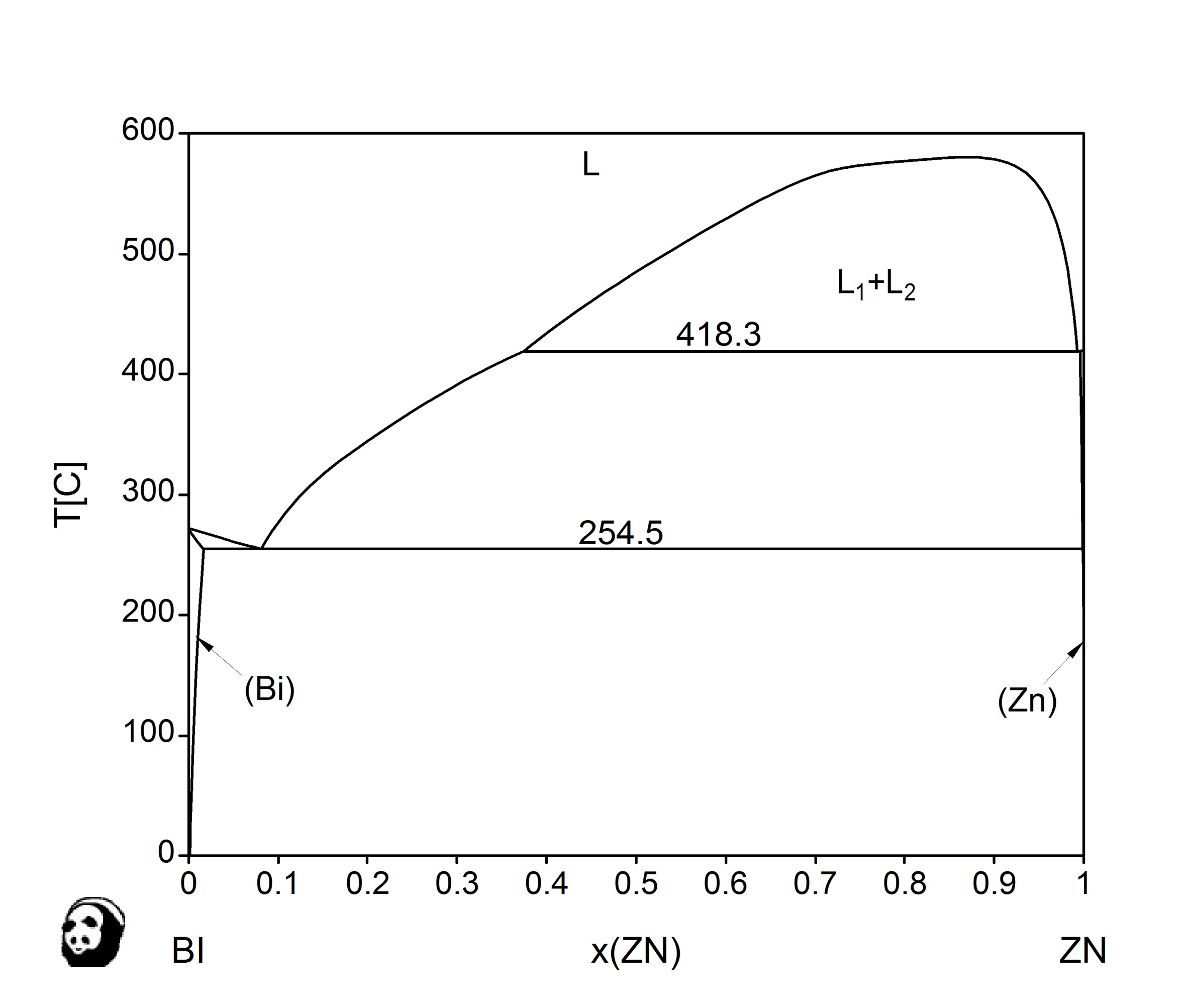

Solidification properties and microstructure of six as-cast Sn–Bi–Zn alloys with 80 at.% of Sn and variable contents of Bi and Zn were experimentally investigated using the scanning electron microscopy (SEM) with energy-dispersive X-ray spectroscopy (EDS) and differential scanning calorimetry (DSC). The experimentally obtained results were compared with predicted phase equilibria according to the calculation of phase diagram (CALPHAD) method and by the Scheil solidification simulation.


Keywords


Sn–Bi–Zn system; solidification; SEM-EDS; DSC

Full Text:

HTML/PDF

References


C. M. Chen, C. H. Chen, J. Electron. Mater. 36 10 (2007) 1363-1371.

C. M. L. Wu, C. M. T. Law, D. Q. Yu, L. Wang, J. Electron. Mater. 32 2 (2003) 63-69.

R. Islam, B. Wu, M. Alam, Y. Chan, W. Jillek, J. Alloy. Compd. 392 (2005) 149-158,

M. Ramani, A. B. Ismail, Z. A. Ahmad, T. Ariga, L.B. Hussain, , J. Teknologi, 46 (2007) 1-14

M.H. Braga, J. Vizdal, A. Kroupa, J. Ferreira, D. Soares, L.F. Malheiros, Calphad, 31 (4) (2007) 468–478.

J. Vizdal, M. H. Braga, A. Kroupa, K. W. Richter, D. Soares, L. F. Malheiros, J. Ferreira, Calphad, 31 (2007) 438–448.

N. Saunders, A.P. Miodownik, CALPHAD (A Comprehensive Guide), Elsevier, London, 1998.

H. L. Lukas, S. G. Fries, B. Sundman, Computational Thermodynamics, Cambridge University Press, Cambridge, UK, 2007.

A. Kroupa, A. T. Dinsdale, A. Watson, J. Vrestal, J. Vízdal, A. Zemanova, JOM 59 (7) (2007) 20-25.

W. Cao, S.L. Chen, F. Zhang, K. Wu, Y. Yang, Y. A. Chang, R. Schmid-Fetzer, W. A. Oates, Calphad, 33 (2009) 328–342.

W.J. Boettinger, U.R. Kattner, K.-W. Moon, J.H. Perepezko, DTA and Heat-flux DSC Measurements of Alloy Melting and Freezing, NIST Special Publication 960-15, Washington, 2006.


Refbacks

  • There are currently no refbacks.


Creative Commons License
This work is licensed under a Creative Commons Attribution 4.0 International License.

Metall Mater Eng   ISSN: 2217-8961

Creative Commons License
Except where otherwise noted, the content on this site is licensed under a Creative Commons Attribution 4.0 International License.
